Vibration ceiling hangers and load suspension, are used for suspension of floating false ceiling with gypsum board, anti-vibration suspension of machinery etc. The main internal elastic material is polyurethane foam with semi-closed cells.

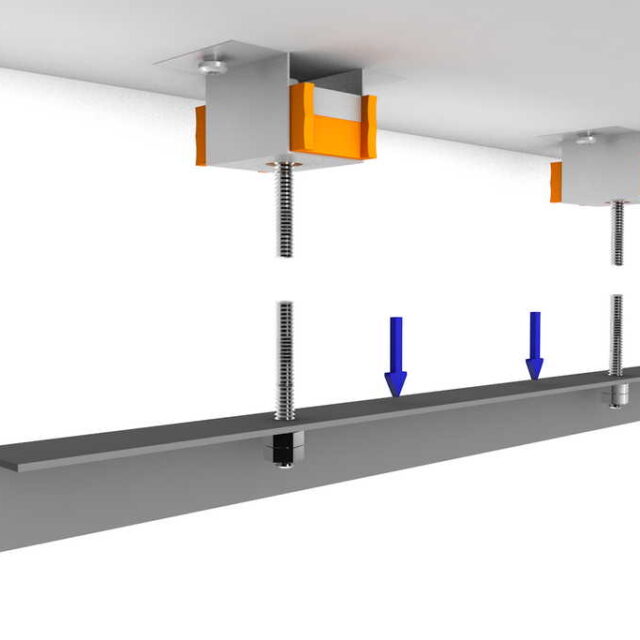

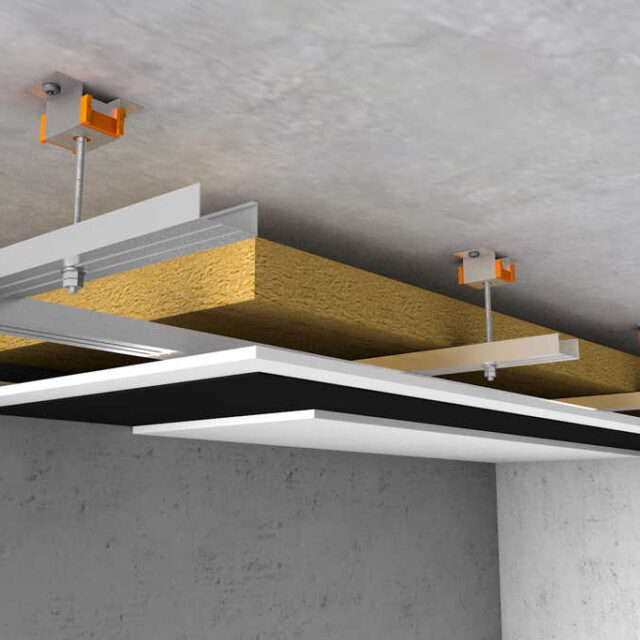

The anti-vibration ceiling hangers Vibro-LS.F are used for load suspension (vertical forces) such as suspension of floating false ceiling with gypsum board, anti-vibration suspension of machinery (ventilators, air-conditioning units e.t.c.), anti-vibration suspension of pipes, air-ducts e.t.c.

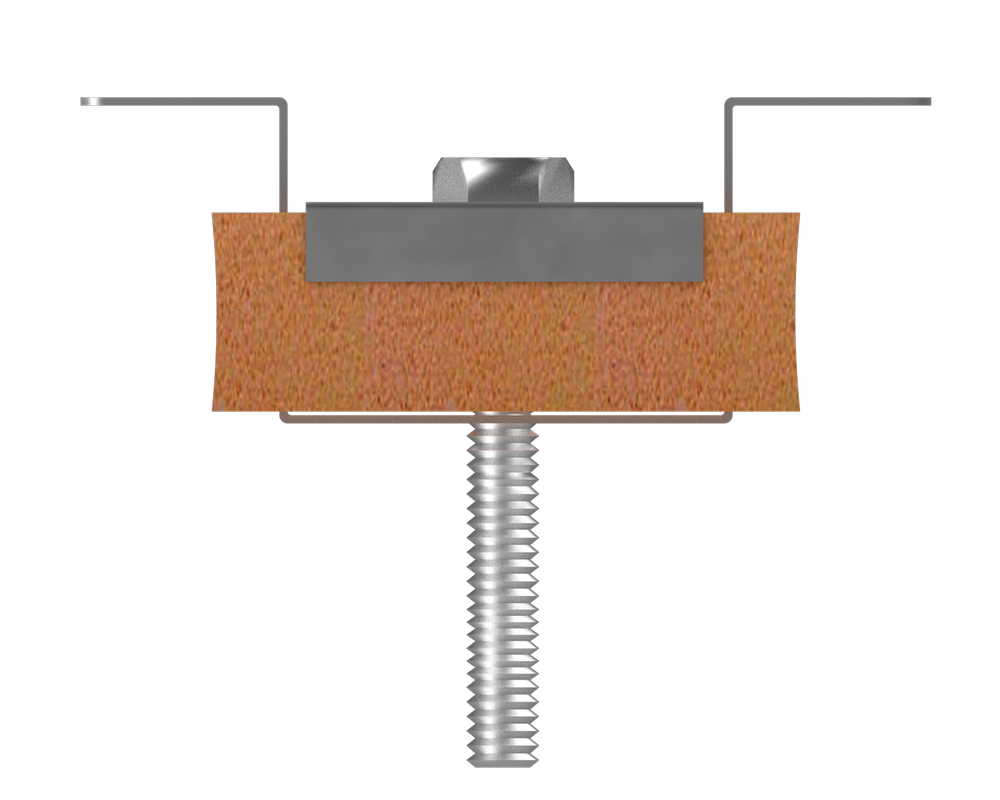

Vibro-LS.F consists of a galvanized metal frame, specially modulated for load hanging. In the middle, there is a high-quality polyurethane foam with semi-closed cells, under trademark Regufoam®, which avoids the transmission of vibrations while providing optimal acoustic results. Its metal assembly is a “fail-safe” structure in fire and impact resistance applications. The pass through screw does not come in contact with the metal frame, so that no sound bridge is created.

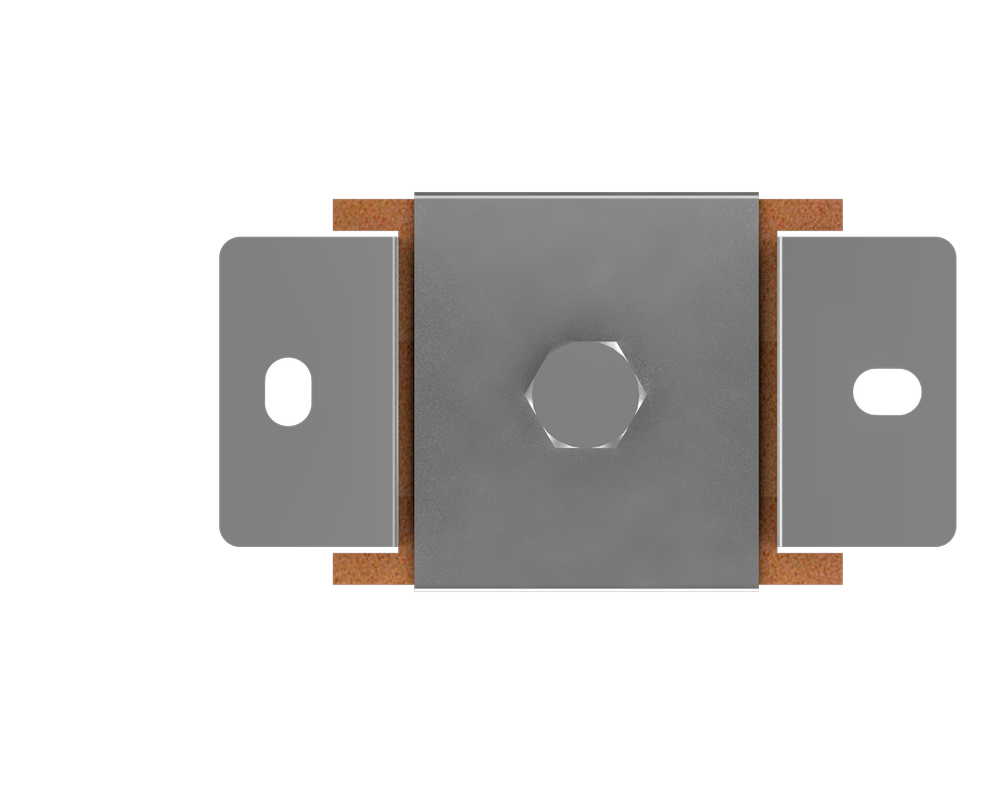

At its base is equipped with two oval holes to facilitate installation.
| TYPE | COLOUR CODE | MAX AXIAL RESTRAINT (daN) |
|---|---|---|
| Vibro-LS.F 10 | Black | 10 |
| Vibro-LS.F 20 | Grey | 20 |
| Vibro-LS.F 40 | Beige | 40 |
Dynamic Characteristics:
Natural frequency (at maximum load) :

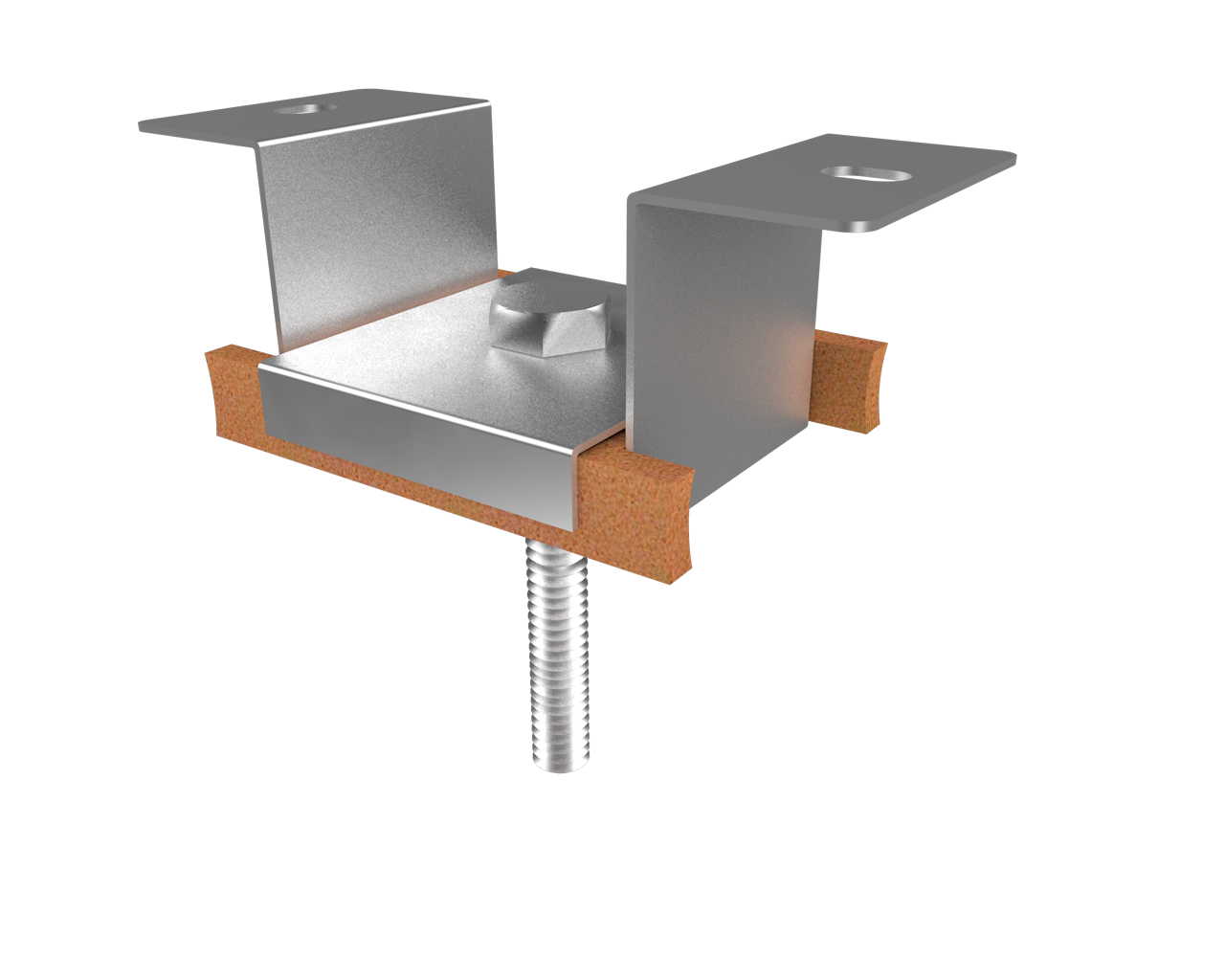

– 14 Hz (12.5mm foam thickness)

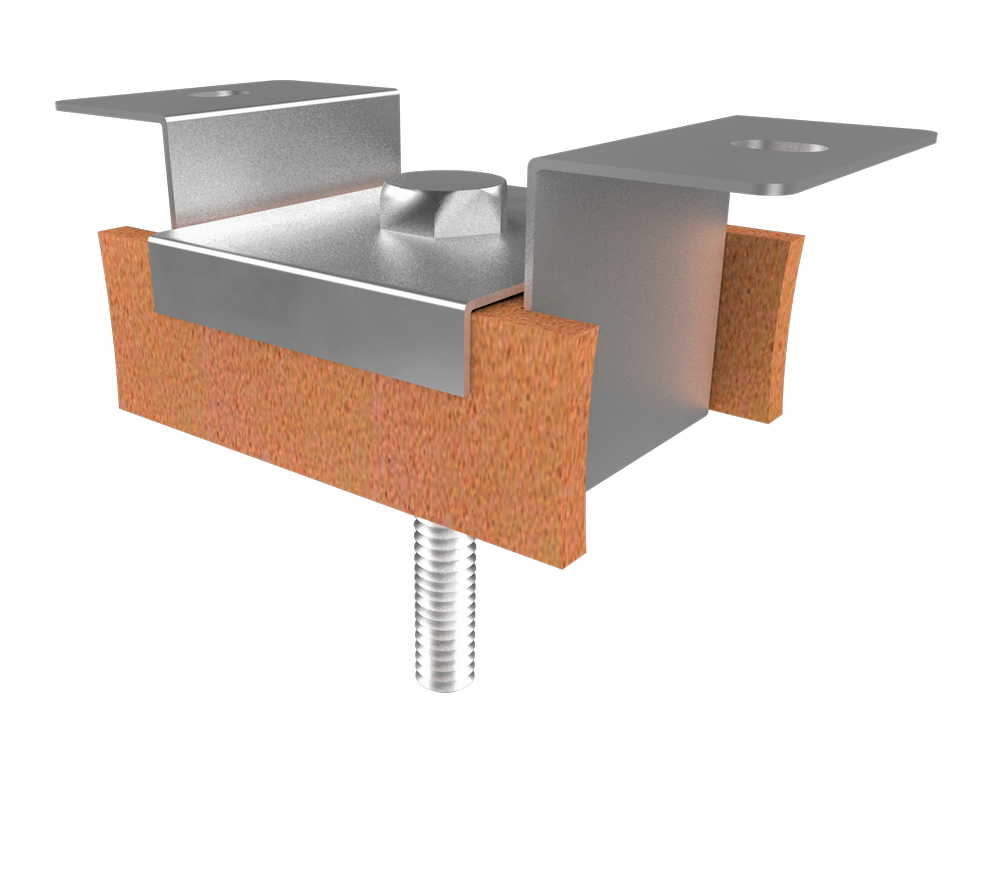

– 10 Hz (25mm foam thickness)
