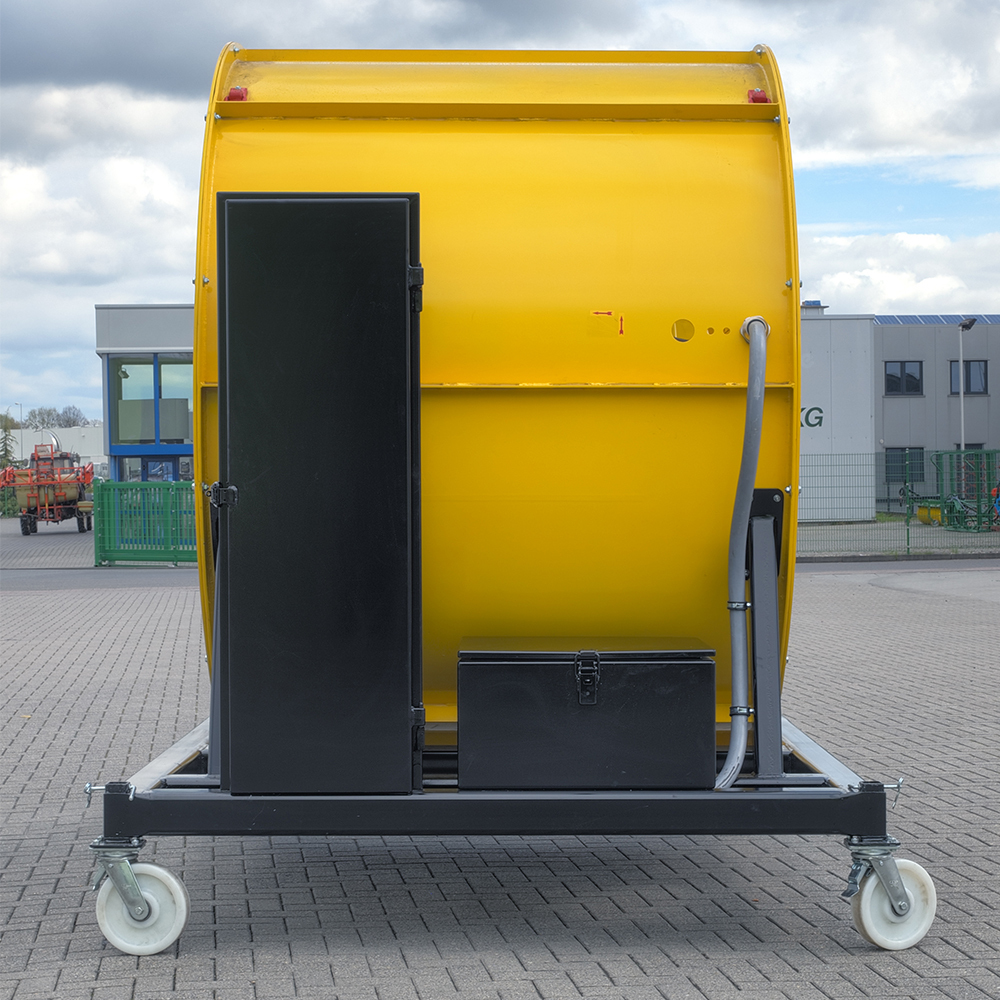

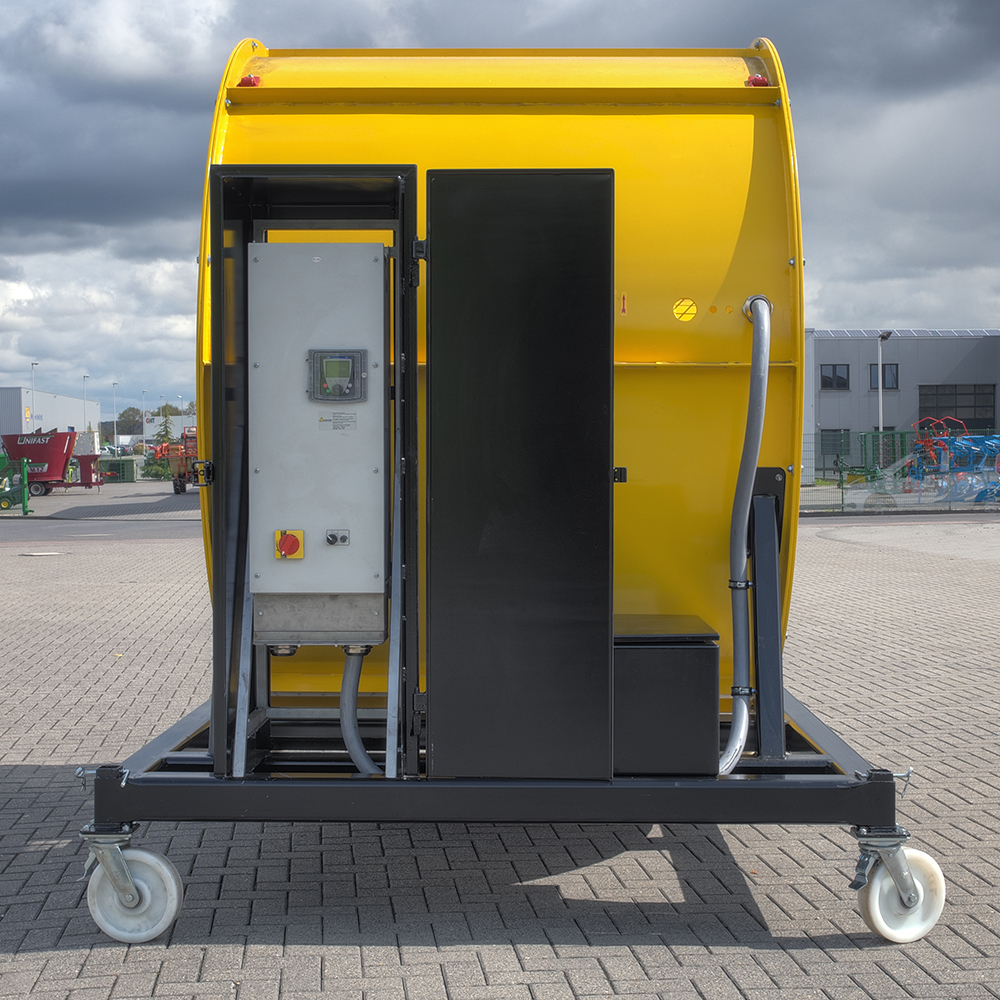

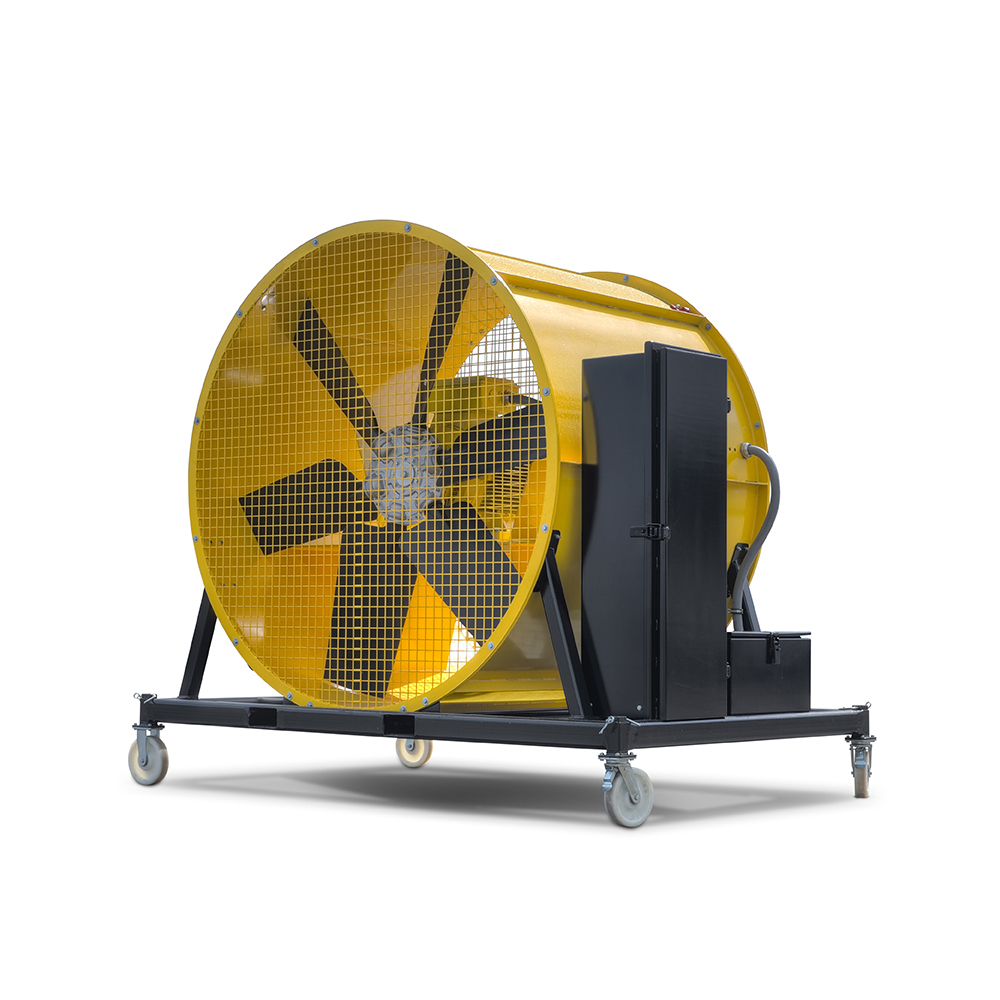

Trotec TTW 400000 – professional axial fan

348658,00 ₾

Uber-wind machines

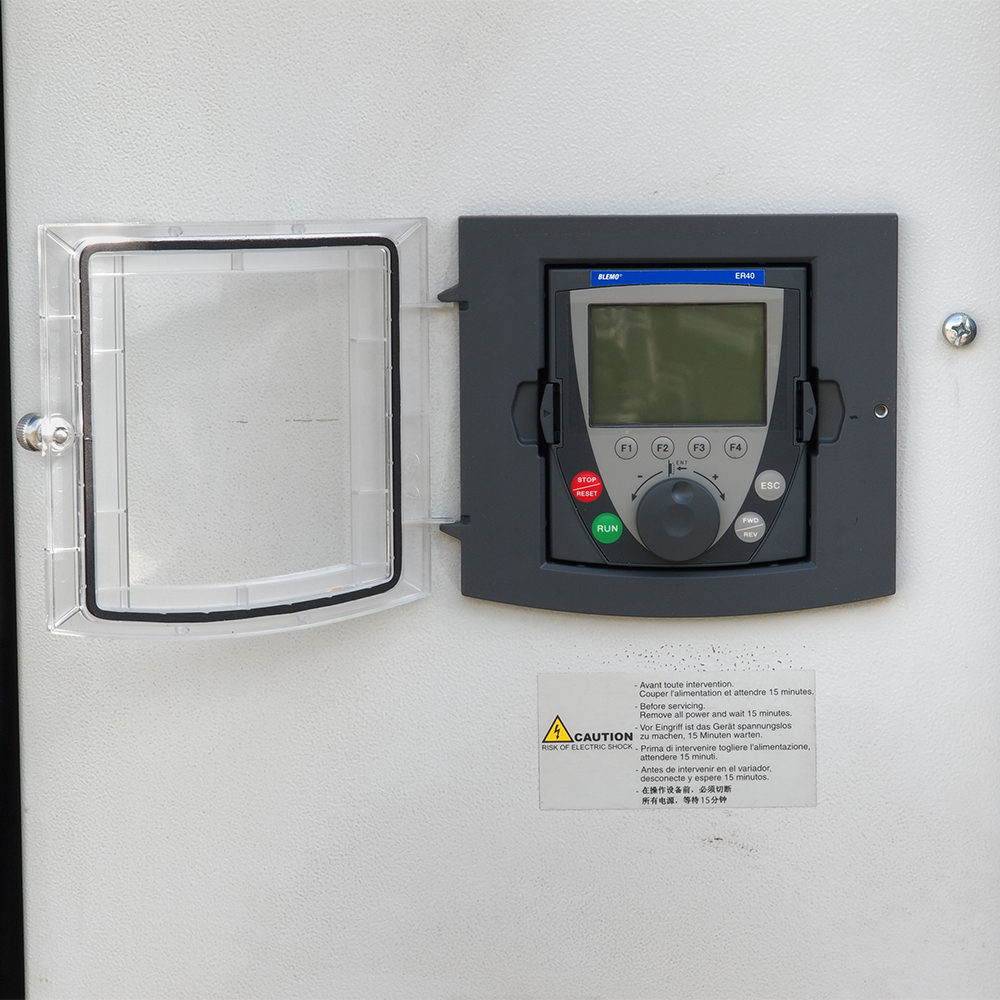

Introducing the TTW 400000, a truly unique wind machine featuring a three-meter blade diameter, a maximum air pressure of 500Pa, and an astonishing airflow rate nearing half a million m³/h. Ideal for maximum air circulation needs, this premium German-made device boasts an exceptionally robust frame and high-quality electronic and mechanical components, ensuring unparalleled durability. Suitable for machine rental companies, industries, and entertainment sectors, it offers stepless regulation of its immense performance with a standard frequency converter. With IP55 protection, it adapts flexibly to indoor and outdoor applications, while a lockable control cabinet ensures secure operation and an additional storage cabinet enhances utility.

Categories: DANTHERM GROUP CLIMATE CONTROL SOLUTIONS, Professional Fans ventilators, Ventilation air handling units Axial Radial blower ventilators Destratifiers Explosion proof ventilators
  • Description
Description

Key features

  • Extremely robust construction, ideal for rental use
  • Astonishing air pressure and airflow
  • Continuously adjustable inclination angle of air flow
  • Infinitely variable air volume
  • IP55-rated ('splashproof')

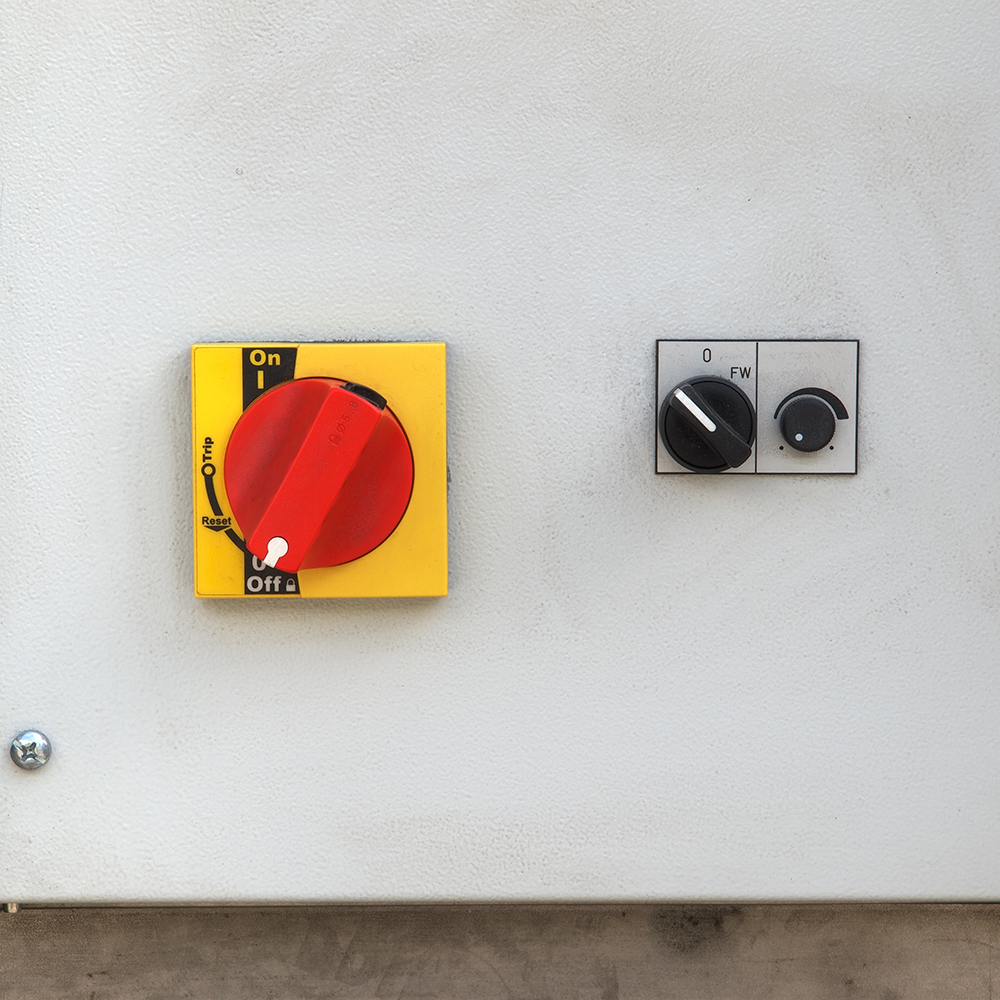

  • Lockable cabinet for secure operation and storage

Product specifications

Specifications Units TTW 400000
Air volume freely blowing max. m³/h 432,000
Air current - blowing out
Air discharge speed km/h 28/100.8
Discharge distance outside/inside m 140/500
Fan stages - infinitely variable
Air pressure max. Pa 500
Max. transport medium temperature °C 40
Power supply V/Hz 400/50
Power input kW 90
Fuse A 200 (direct connection)
Type of protection - IP55
Explosion protection - -
Sound level @3m dB(A) 92
Product size (l x w x h) mm 2580 x 1800 x 2725
Weight kg 2,225

Suitable for

  • Events and festivals
  • Rental companies

Useful downloads

  • Trotec catalogue
  • Dantherm RCV 320 manual
