Home DANTHERM GROUP CLIMATE CONTROL SOLUTIONS Ventilation air handling units Axial Radial blower ventilators Destratifiers Explosion proof ventilators Radial fans for explosion protection zones Trotec TFV 100 Ex – radial fan

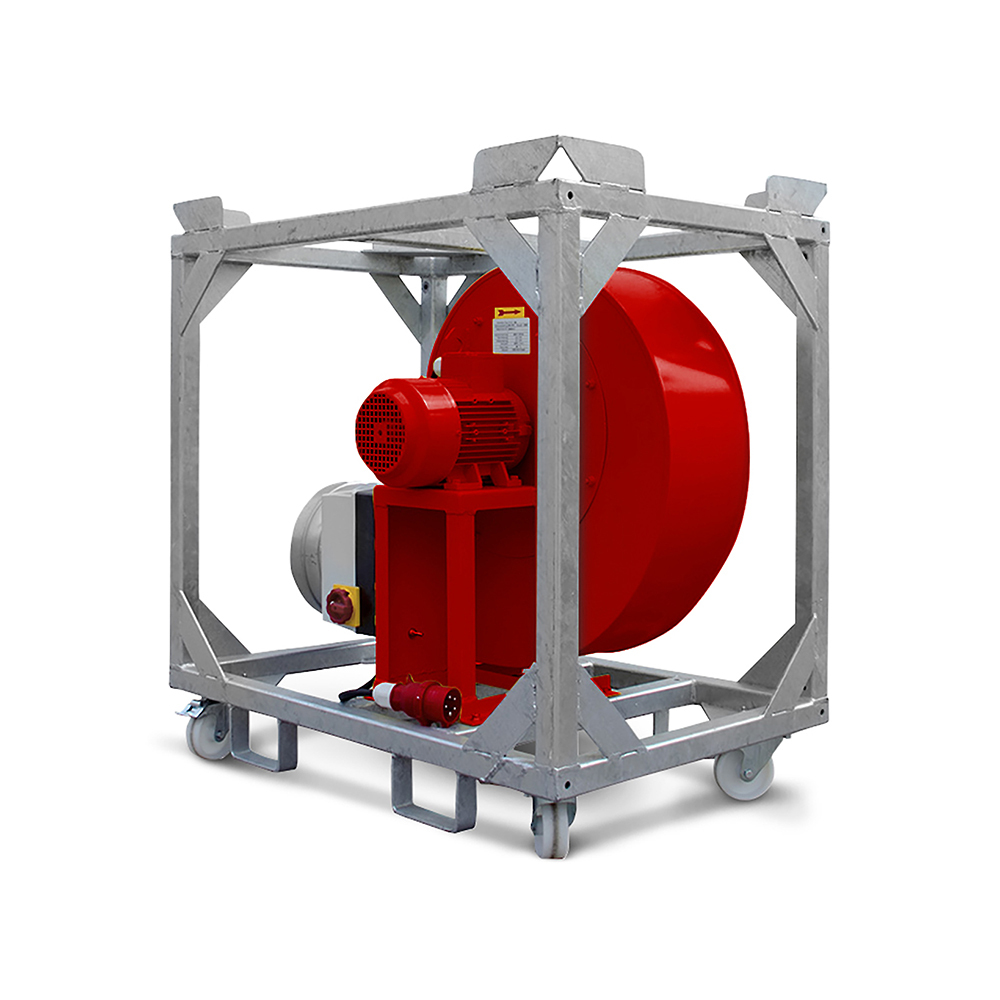

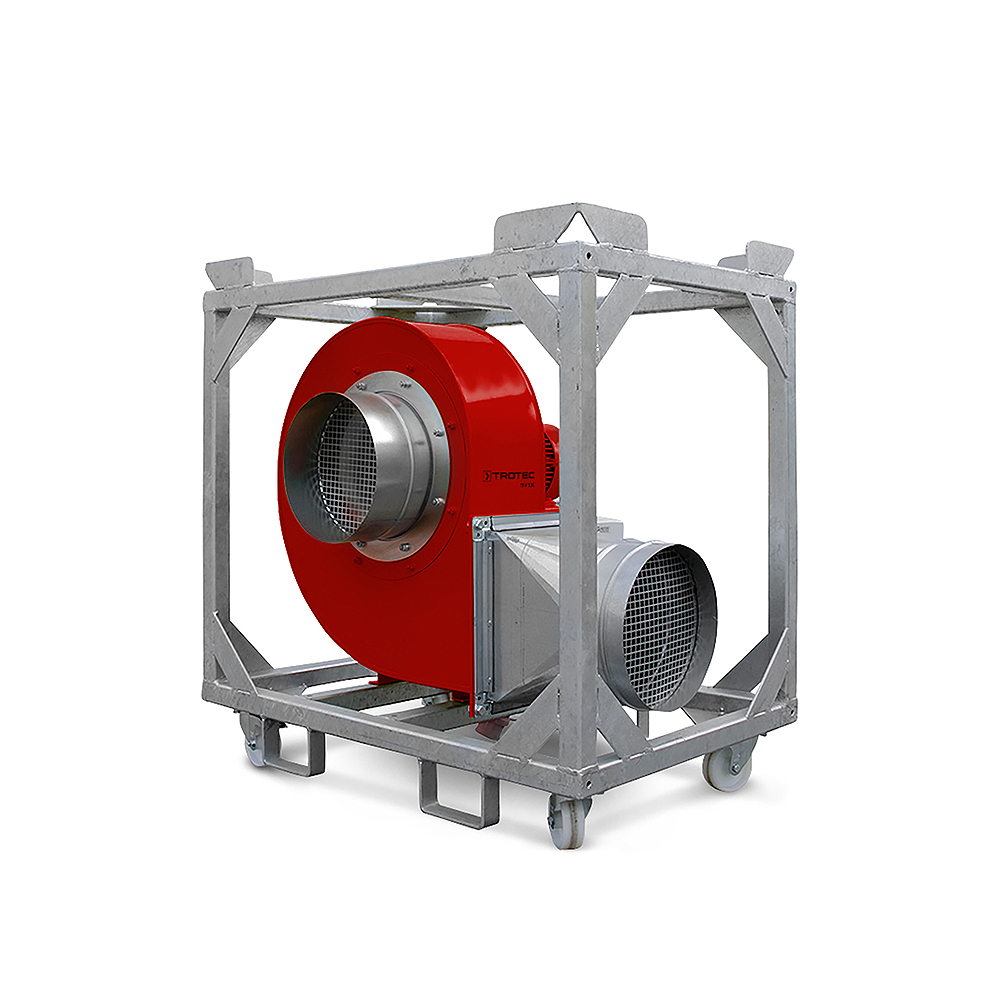

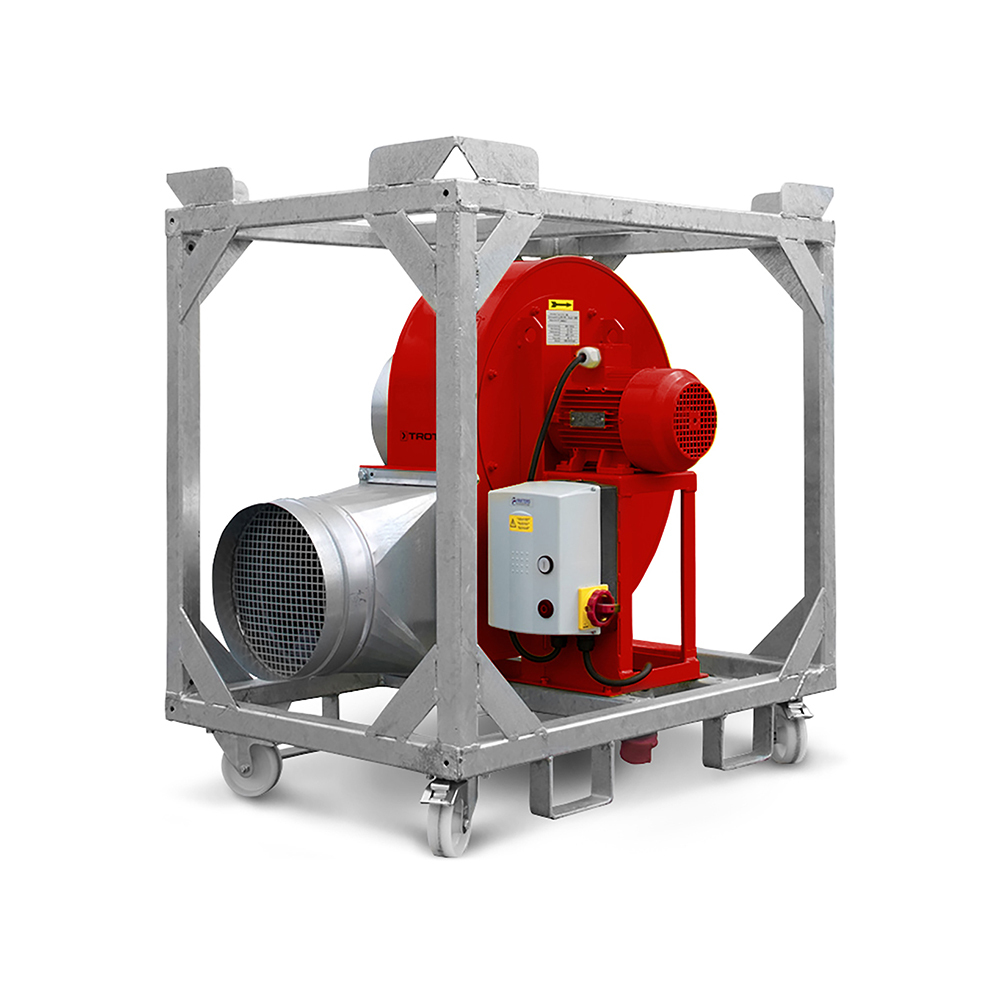

Trotec TFV 100 Ex – radial fan

32181,00 ₾

Radial fans for explosion protection zones
The TFV 100 Ex is an explosion-proof radial fan designed for use in hazardous environments. With an airflow rate of up to 1,500m³/h, it is ideal for tasks such as drying, cooling, and ventilation in areas where there is a risk of explosion. The fan features a lightweight and durable plastic housing that is certified for use in explosive atmospheres. It also has a variable speed control and an adjustable air outlet, allowing you to customise the airflow to your specific needs. With its high-performance motor and explosion-proof design, the TFV 100 Ex is a great choice for hazardous ventilation tasks.
Categories: DANTHERM GROUP CLIMATE CONTROL SOLUTIONS, Radial fans for explosion protection zones, Ventilation air handling units Axial Radial blower ventilators Destratifiers Explosion proof ventilators
  • Description
Description

Key features

  • Robust high-quality radial fan
  • Explosion group II, category 3G, temperature class 4
  • Fan motor is placed outside of the main air current
  • Connectable to intake and exhaust ducts
  • Stable characteristics and constantly high pressure
  • Optionally available for explosion group II, category 2G (zone 1), category 2D (zone 21) and category 3D (zone 2)

Product specifications

Specifications Units TFV 100 Ex
Air volume freely blowing max.
m³/h
4,000
Air flow
blowing out / sucking in
Air discharge speed
m/s (km/h)
17/61.2
Fan stages
1
Air pressure max.
Pa
2,080
Max. transport medium temperature
°C
60
Power supply
V/Hz
400/50
Power input
kW
2.2
Necessary fuse
A
10
Explosion protection
2/ II3G, T4
Type of protection
IP55
Sound level @3m
dB(A)
81.5
Product size (l x w x h)
mm
960 x 560 x 750
Weight
kg
120

Suitable for:

  • Agriculture
  • Construction
  • Events and festivals
  • Industrial, factories and production
  • Rental companies
  • Warehouses and storage
  • Water damage restoration
